Automatic Nucleic Acid Purifier

Automatic Nucleic Acid Purifier, Best GLP Lab Choice， Magnetic Beads Separation Technique Based

(read more about what nucleic acid purification is.)

Automatic Nucleic Acid Purifier

Features

  • With magnetic residue low to <0.5%
  • With magnetic rod replaceable for prolonged device life
  • With multiple modes to meet different assay conditions
  • With superior heating stability
  • With UV light and HEPA Level 11 contamination controls
  • With assay protocol storable and recallable

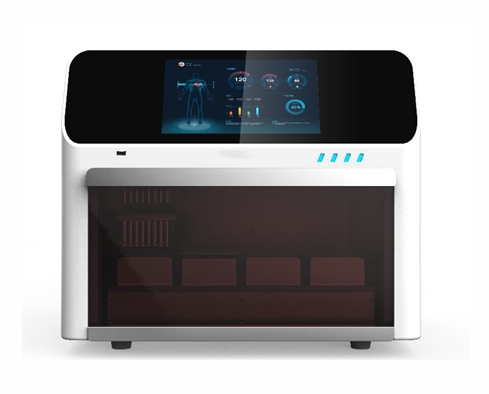

HTS-Automatic-Nucleic-Acid-Extractor-front-view

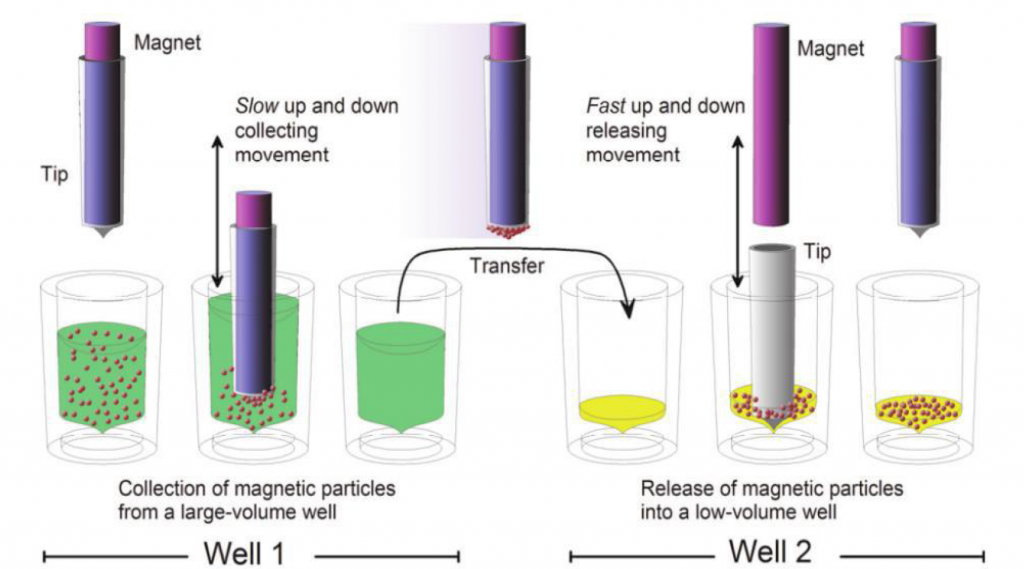

The Technique of Magnetic Beads Separation

Parameters – Automatic Nucleic Acid Purifier

ModelHTS
Sample Channel1 ~ 96
Sample Volume20 ~ 1000μl
Recovery Rate98%
Diameter of Magnetic Bead>1um on average
Cycle Time10 min.
Quantity of Magnetic Rod96
Plate Station4
Type of Plate96deep-well plate
Sleeve for Magnetic Rod1 piece for 4 plates
Heating Temperature Range & Stability10 ~ 105°C +/-2°C
Computer Interface10″, 1024 x 600 full-color touch screen
Operating Condition5 ~ 40°C <80% R/H, altitude <2000m,
Power Supply100 ~ 240V, 50/60Hz
Power Consumption96VA
Heat Dissipation< 328BTU
Data Storageno less than 500 sets of extraction protocol
Data InputUSB or Computer
Computer ConnectionRS232
G. WeightAbout 27Kg
O. DimensionApprox. 510 x 430 x 470 mm
Safety ComplianceIEO60601-1-2:2001; IEC61010-2:2001
Contamination ControlHEPA Level 11 & UV light

Browse the rest of our nucleic acid extraction and purification instruments.
